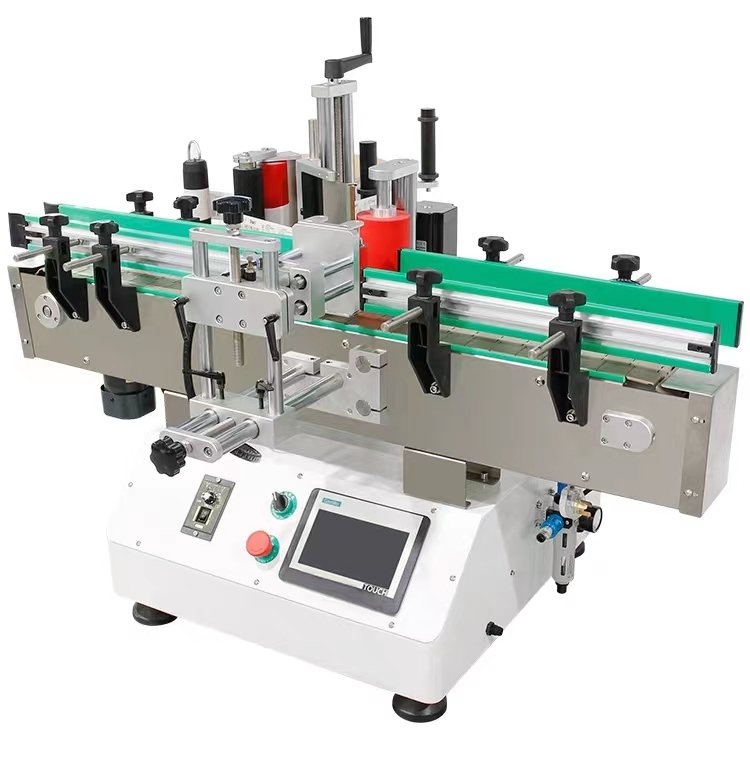

ZMTN-150D Desktop Positioning Round Bottle Labeling Machine

I. Basic Purpose

Suitable for automatically applying one or multiple labels on the circumference of various round bottles or small-tapered round bottles. Equipped with a cylinder-positioning labeling mechanism for more stable labeling accuracy. A positioning detection sensor can be added to achieve fixed-point labeling on the circumferential surface of products.

Examples include: wine bottles, medicine bottles, vials, eye drop bottles, chili sauce bottles, health product bottles, protein powder bottles, preserved plum bottles, PET bottles, beverage bottles, cosmetic bottles, mineral water bottles, imported tin cans, imported cosmetics, etc.

Customized labeling functions for tapered bottles are available to meet needs such as labeling tapered wine bottles, tapered wine glasses, tapered clay cups, etc.

II. Scope of Application

Applicable Labels: Self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, date codes, etc.

Applicable Products: Products requiring labels or films on the circumferential surface.

Industries: Widely used in food, pharmaceuticals, cosmetics, daily chemicals, electronics, plastic & hardware, printing, digital products, and other industries.

III. Technical Parameters

Labeling Accuracy: ±1mm (excluding product and label errors)

Labeling Speed: 30-60 pieces/minute

Applicable Bottle Diameter: φ25mm-φ100mm

Applicable Bottle Height: 40mm-200mm

Label Size Range: Length 20mm-300mm; Backing paper width 25mm-150mm

Machine Dimensions: Approx. 1220mm × 750mm × 800mm

·
