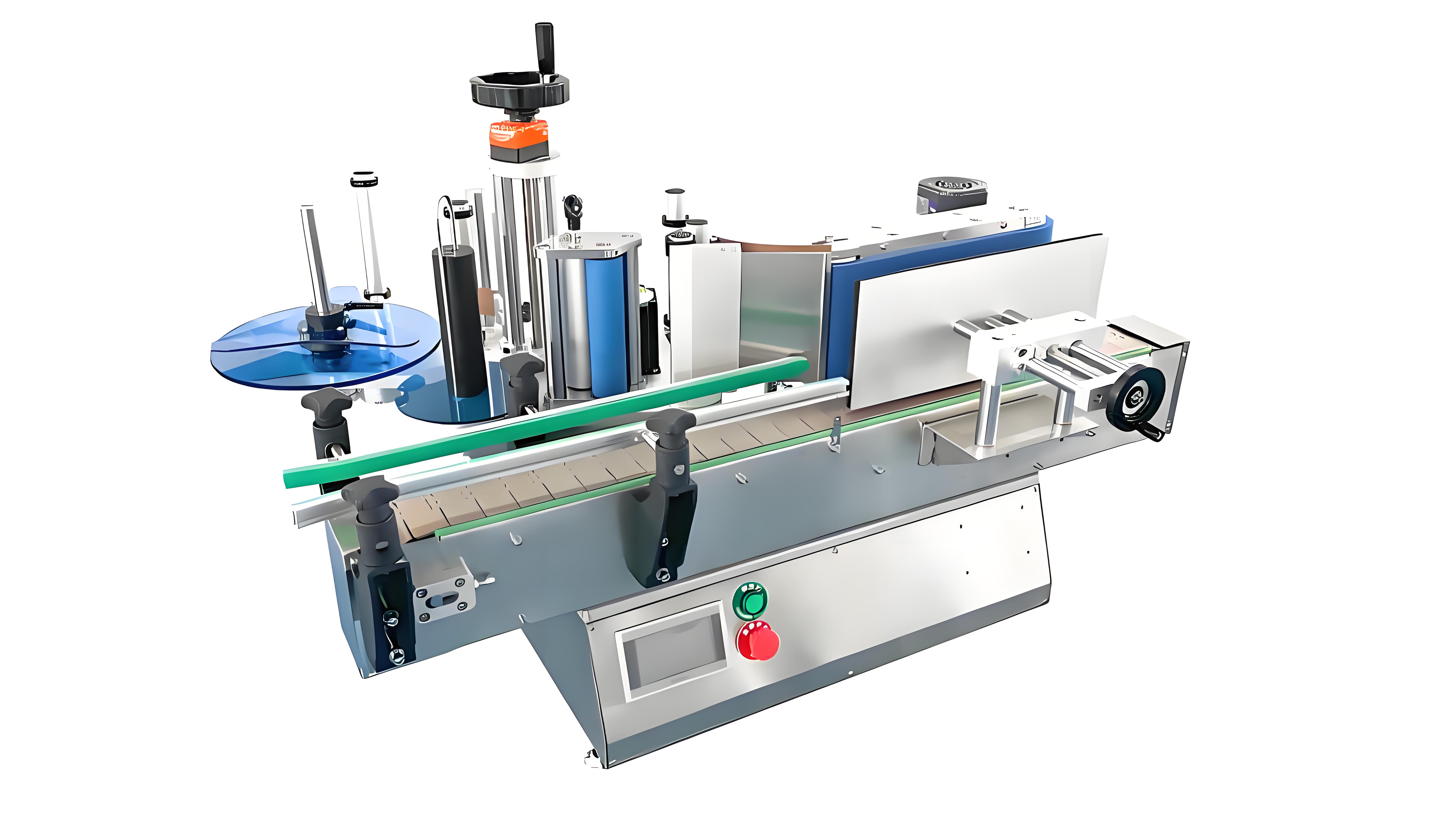

ZMTN-150 Desktop Round Bottle Labeling Machine

I. Basic Purpose

Suitable for automatically applying one or multiple labels to the circumference of various round bottles or small-tapered round bottles, such as: wine bottles, medicine bottles, vials, eye drop bottles, chili sauce bottles, health product bottles, protein powder bottles, preserved fruit bottles, PET bottles, beverage bottles, cosmetic bottles, mineral water bottles, imported tin cans, imported cosmetics, etc. The machine can be customized for tapered bottle labeling, meeting needs such as tapered wine bottles, tapered glasses, or tapered clay cups.

2. Scope of Application

Applicable Labels: Self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, date codes, etc.

Applicable Products: Products requiring labels or films on the circumferential surface.

Industries: Widely used in food, pharmaceuticals, cosmetics, daily chemicals, electronics, plastic & hardware, printing, digital products, and other industries.

3. Technical Parameters

Labeling Accuracy: ±1mm (excluding product and label errors)

Labeling Speed: 30-60 pieces/minute

Applicable Bottle Diameter: φ25mm-φ100mm

Applicable Bottle Height: 40mm-200mm

Label Size Range: Length 20mm-300mm; Backing paper width 25mm-150mm

Machine Dimensions: Approx. 1220mm × 750mm × 800mm
