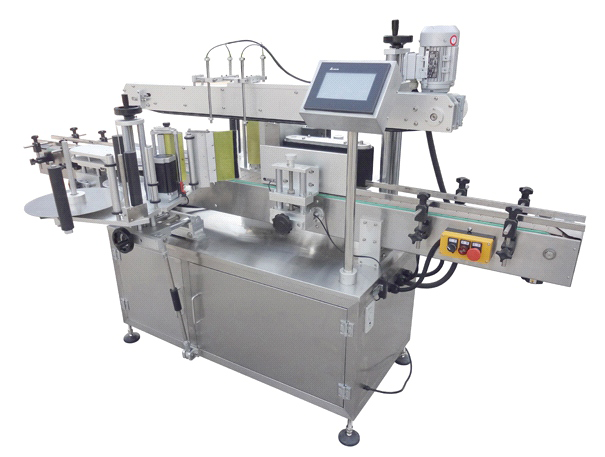

TBD-150B Multi-Function Labeling Machine

This equipment is an ideal solution for high-speed automatic labeling on various packaging products, including flat bottles, round bottles, and more, across multiple packaging industries. The machine features advanced functionality, simple operation, and a compact structure.

Equipped with photoelectric detection, PLC control, and touchscreen software operation, it ensures precise labeling with stepless speed adjustment for conveying, bottle stabilization, and bottle separation. Additionally, it offers smart functions such as no-label-no-application, automatic label correction, and auto-detection capabilities.

Technical Specifications for Labeling Machine

1.Labeling Speed: 3,000-5,000 bottles/hour
2.Labeling Accuracy: ±1mm
3.Label Size for Square Bottles: Length 20-150mm × Height 20-160mm

4.Label Size for Round Bottles: Length 20-260mm × Height 140mm

5.Upper Pressure Adjustment Range: 60-300mm

6.Power Supply: 220V AC, 50Hz / 3.0KW

7.Machine Dimensions (L×W×H): 3000×1640×1845mm
