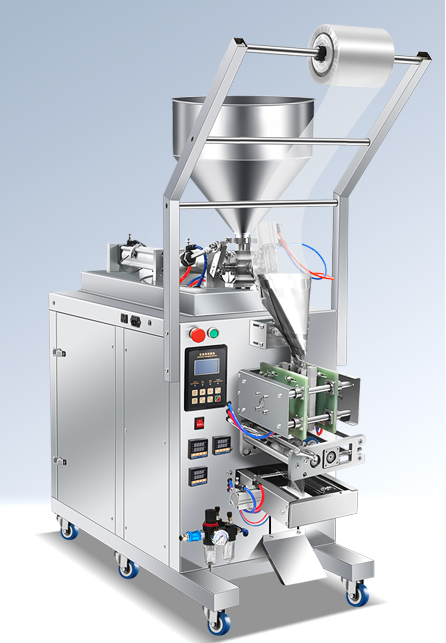

LS-200 Vertical Film Roll Liquid Pouch Packing Machine

Features

Suitable for the metered packaging of liquid products in the food, pharmaceutical, chemical, and cosmetics industries.

Automatically completes bag forming, measuring, filling, sealing, cutting, and counting. Can also be configured with batch number printing upon customer request.

Touchscreen operation with PLC control, driven by a stepper motor for precise bag length adjustment. Stable performance, easy adjustments, and accurate detection. Intelligent temperature controller with PID regulation ensures temperature accuracy within ±1°C.

Compatible packaging materials: Polypropylene/Polyethylene (PP/PE), Aluminum Foil/Polyethylene, Polyester/Metallized/Polyethylene, Nylon/Reinforced Polyethylene, Paper/Polyethylene, etc.

Technical Parameters

1.Packaging Range: 5-50mL (customizable based on customer requirements)

2.Packaging Speed: 10-20 bags/minute

3.Operating Voltage: 220V

4.Applicable Film Width: Up to 20cm

5.Finished Bag Width: Up to 10cm
