技术说明

开箱机是指自动完成开箱、成形、下底折叶折曲，并限时完成下部分胶带粘贴，将叠成纸板的箱板打开，箱子底部按一定程序折合，并用胶带密封后输送给装箱机的专用设备。开箱机机全部采用PLC+显示屏控制，大大方便操作，是自动化规模生产 必不可少的设备。

技术参数

1.适用纸箱：长：300-650mm   宽：200-500mm    高：200-500mm

2.台面高度：MIN：650mm     MAX：700mm

3.开箱速度：6-8箱/分钟

4.电源/功率：～220V    50Hz/0.3KW

5.气    源：0.6-0.8MPa

6.适用胶带：W48-60-75mm×L1000码

7.纸箱存储量：50-70个

8.整机尺寸：2545×2160×1740mm（L×W×H)

Technical Description

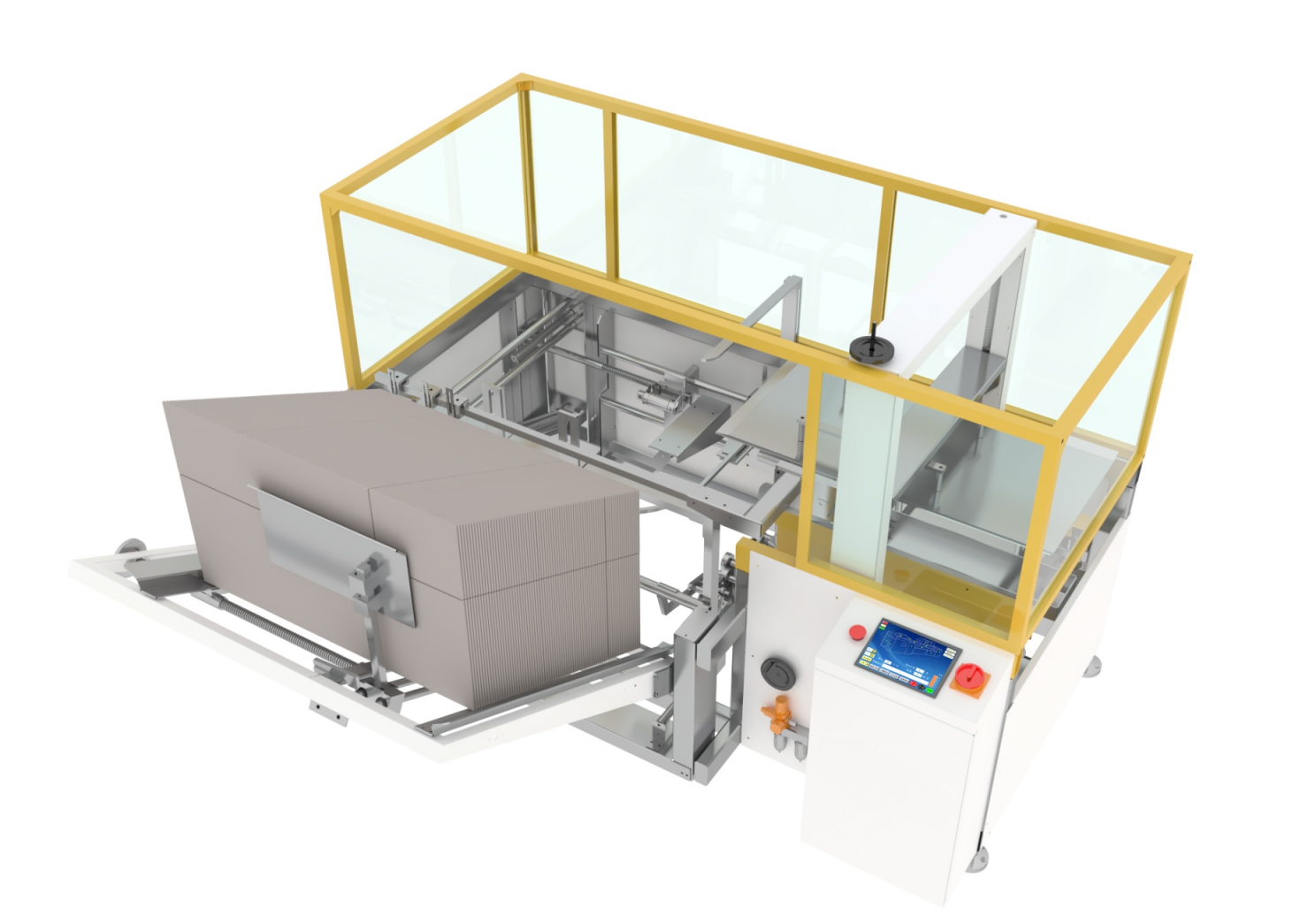

The carton erector is a specialized equipment designed to automatically perform carton opening, forming, bottom flap folding, and timed lower-seal taping. It unfolds flat-packed carton blanks, sequentially folds the bottom flaps according to programmed steps, seals them with adhesive tape, and conveys the erected cartons to packing machines. The entire system adopts PLC + HMI (Human-Machine Interface) control, significantly enhancing operational convenience. It is an indispensable asset for large-scale automated production.

Technical Parameters

1.Carton Compatibility:Length: 300–650mm | Width: 200–500mm | Height: 200–500mm

2.Table Height:Min: 650mm | Max: 700mm

3.Erection Speed: 6–8 cartons/minute

4.Power Supply: ～220V, 50Hz | Power Consumption: 0.3KW

5.Air Supply: 0.6–0.8MPa

6.Tape Compatibility: W48/60/75mm × L1000 yards

7.Carton Storage Capacity: 50–70 cartons

8.Machine Dimensions (L×W×H): 2450×2150×1740mm
